Rocketry Parts Database >> Fins >>

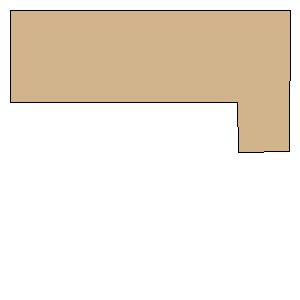

Raptor Freeform Fin Set Freeform Fin Set

Manufacturer:Custom
Part Number:
Style:Freeform Fin Set
Material:Balsa

Download as PDF

Point 1:(0.0000 mm, 25.4000 mm)
Point 2:(62.3727 mm, 25.4060 mm)
Point 3:(62.7320 mm, 39.0587 mm)
Point 4:(76.6017 mm, 38.9129 mm)
Point 5:(76.7440 mm, 0.1592 mm)
Point 6:(0.0000 mm, 0.0000 mm)
Width:3.0214 inches (76.7440 mm)
Height:1.5377 inches (39.0587 mm)
