Atomic Freeform Fin Set Freeform Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Freeform Fin Set | | Material: | Balsa |

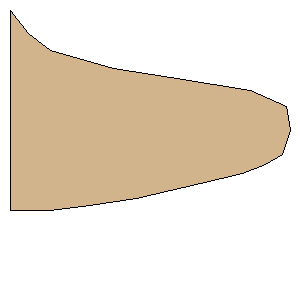

Download as PDF | Point 1: | (0.0000 mm, 31.7500 mm) | | Point 2: | (6.3500 mm, 31.7500 mm) | | Point 3: | (12.6390 mm, 31.0598 mm) | | Point 4: | (20.0342 mm, 29.9841 mm) | | Point 5: | (30.2530 mm, 27.5639 mm) | | Point 6: | (36.9759 mm, 25.9504 mm) | | Point 7: | (40.6063 mm, 24.4713 mm) | | Point 8: | (43.2954 mm, 22.9923 mm) | | Point 9: | (44.4500 mm, 19.0500 mm) | | Point 10: | (43.9677 mm, 15.3282 mm) | | Point 11: | (38.1000 mm, 12.7000 mm) | | Point 12: | (25.5470 mm, 10.7566 mm) | | Point 13: | (16.4039 mm, 9.2776 mm) | | Point 14: | (6.3500 mm, 6.3500 mm) | | Point 15: | (2.9581 mm, 3.7648 mm) | | Point 16: | (0.0000 mm, 0.0000 mm) | | Width: | 1.7500 inches (44.4500 mm) | | Height: | 1.2500 inches (31.7500 mm) |
