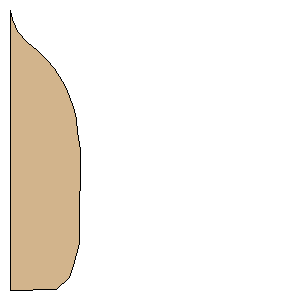

WishBone Freeform Fin Set Freeform Fin SetManufacturer: | Custom | Part Number: | | Style: | Freeform Fin Set | Material: | Balsa |
Download as PDF Point 1: | (0.0000 mm, 152.4000 mm) | Point 2: | (25.4000 mm, 152.1460 mm) | Point 3: | (32.2672 mm, 145.3353 mm) | Point 4: | (34.4089 mm, 138.9103 mm) | Point 5: | (36.1223 mm, 132.9136 mm) | Point 6: | (37.8356 mm, 126.9169 mm) | Point 7: | (37.8356 mm, 120.4918 mm) | Point 8: | (38.1000 mm, 76.2000 mm) | Point 9: | (36.9066 mm, 66.5207 mm) | Point 10: | (36.2391 mm, 59.8453 mm) | Point 11: | (34.5702 mm, 53.1700 mm) | Point 12: | (32.5676 mm, 46.8284 mm) | Point 13: | (30.2312 mm, 41.4881 mm) | Point 14: | (24.1839 mm, 32.0765 mm) | Point 15: | (19.7641 mm, 27.0253 mm) | Point 16: | (14.7129 mm, 21.9740 mm) | Point 17: | (9.6617 mm, 17.5542 mm) | Point 18: | (4.2947 mm, 11.8716 mm) | Point 19: | (1.1377 mm, 4.9261 mm) | Point 20: | (0.0000 mm, 0.0000 mm) | Width: | 6.0000 inches (152.4000 mm) | Height: | 6.0000 inches (152.4000 mm) |
