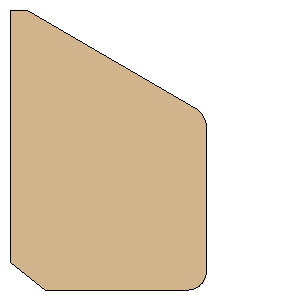

741_Demo.rkt Freeform Fin Set Freeform Fin SetManufacturer: | Custom | Part Number: | | Style: | Freeform Fin Set | Material: | Balsa |
Download as PDF Point 1: | (0.0000 mm, 45.7200 mm) | Point 2: | (6.3500 mm, 50.8000 mm) | Point 3: | (32.3850 mm, 50.8000 mm) | Point 4: | (32.7994 mm, 50.7728 mm) | Point 5: | (33.2068 mm, 50.6918 mm) | Point 6: | (33.6000 mm, 50.5583 mm) | Point 7: | (33.9725 mm, 50.3746 mm) | Point 8: | (34.3178 mm, 50.1439 mm) | Point 9: | (34.6301 mm, 49.8701 mm) | Point 10: | (34.9039 mm, 49.5578 mm) | Point 11: | (35.1346 mm, 49.2125 mm) | Point 12: | (35.3183 mm, 48.8400 mm) | Point 13: | (35.4518 mm, 48.4468 mm) | Point 14: | (35.5600 mm, 47.6250 mm) | Point 15: | (35.5600 mm, 20.8659 mm) | Point 16: | (35.5125 mm, 20.3188 mm) | Point 17: | (35.3715 mm, 19.7881 mm) | Point 18: | (35.1411 mm, 19.2896 mm) | Point 19: | (34.8282 mm, 18.8383 mm) | Point 20: | (33.9948 mm, 18.1293 mm) | Point 21: | (3.1750 mm, 0.0000 mm) | Point 22: | (0.0000 mm, 0.0000 mm) | Width: | 1.8000 inches (45.7200 mm) | Height: | 2.0000 inches (50.8000 mm) |
