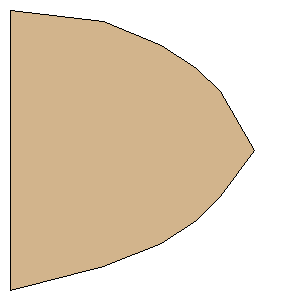

2SQRT Minus 1 Freeform Fin Set Freeform Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Freeform Fin Set | | Material: | Balsa |
Download as PDF | Point 1: | (0.0000 mm, 76.2000 mm) | | Point 2: | (25.4000 mm, 69.8500 mm) | | Point 3: | (41.2750 mm, 63.5000 mm) | | Point 4: | (50.8000 mm, 57.1500 mm) | | Point 5: | (57.1500 mm, 50.8000 mm) | | Point 6: | (66.6750 mm, 38.1000 mm) | | Point 7: | (57.1500 mm, 22.2250 mm) | | Point 8: | (50.8000 mm, 15.8750 mm) | | Point 9: | (41.2750 mm, 9.5250 mm) | | Point 10: | (25.4000 mm, 3.1750 mm) | | Point 11: | (0.0000 mm, 0.0000 mm) | | Width: | 3.0000 inches (76.2000 mm) | | Height: | 3.0000 inches (76.2000 mm) |
