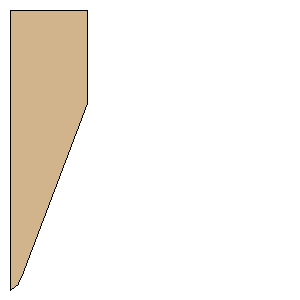

Estes Solar Flare Freeform Fin S Freeform Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Freeform Fin Set | | Material: | Balsa |
Download as PDF | Point 1: | (0.0000 mm, 114.3000 mm) | | Point 2: | (0.5696 mm, 114.0650 mm) | | Point 3: | (1.0344 mm, 113.8500 mm) | | Point 4: | (1.4804 mm, 113.6000 mm) | | Point 5: | (1.9047 mm, 113.3130 mm) | | Point 6: | (2.3046 mm, 112.9940 mm) | | Point 7: | (2.6776 mm, 112.6440 mm) | | Point 8: | (3.0210 mm, 112.2640 mm) | | Point 9: | (3.3328 mm, 111.8580 mm) | | Point 10: | (3.6109 mm, 111.4290 mm) | | Point 11: | (3.8536 mm, 110.9780 mm) | | Point 12: | (4.0591 mm, 110.5100 mm) | | Point 13: | (4.5277 mm, 109.3120 mm) | | Point 14: | (31.7500 mm, 38.1000 mm) | | Point 15: | (31.7500 mm, 0.0000 mm) | | Point 16: | (0.0000 mm, 0.0000 mm) | | Width: | 4.5000 inches (114.3000 mm) | | Height: | 4.5000 inches (114.3000 mm) |
