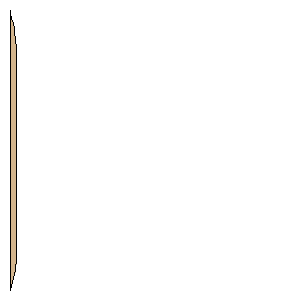

Estes Bomarc EST 0657 Freeform F Freeform Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Freeform Fin Set | | Material: | Balsa |
Download as PDF | Point 1: | (0.0000 mm, 419.1000 mm) | | Point 2: | (2.2098 mm, 412.1890 mm) | | Point 3: | (3.5908 mm, 407.2170 mm) | | Point 4: | (5.5244 mm, 400.8640 mm) | | Point 5: | (6.6292 mm, 396.1680 mm) | | Point 6: | (7.7341 mm, 390.3670 mm) | | Point 7: | (8.8390 mm, 384.2900 mm) | | Point 8: | (9.3914 mm, 378.2140 mm) | | Point 9: | (9.5332 mm, 373.7380 mm) | | Point 10: | (9.5250 mm, 64.1046 mm) | | Point 11: | (9.5895 mm, 61.5639 mm) | | Point 12: | (9.3941 mm, 58.8277 mm) | | Point 13: | (9.1987 mm, 55.7006 mm) | | Point 14: | (9.0032 mm, 53.3553 mm) | | Point 15: | (8.8390 mm, 50.5480 mm) | | Point 16: | (8.5628 mm, 47.7858 mm) | | Point 17: | (8.2866 mm, 45.0236 mm) | | Point 18: | (8.0103 mm, 42.2614 mm) | | Point 19: | (7.1817 mm, 37.0133 mm) | | Point 20: | (6.3530 mm, 29.8316 mm) | | Point 21: | (4.6957 mm, 20.7164 mm) | | Point 22: | (2.7622 mm, 12.4298 mm) | | Point 23: | (1.1049 mm, 5.5244 mm) | | Point 24: | (0.0000 mm, 0.0000 mm) | | Width: | 16.5000 inches (419.1000 mm) | | Height: | 16.5000 inches (419.1000 mm) |
