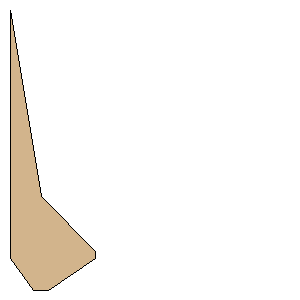

Bobcat.rkt Freeform Fin Set Freeform Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Freeform Fin Set | | Material: | Balsa |
Download as PDF | Point 1: | (0.0000 mm, 101.6000 mm) | | Point 2: | (9.5250 mm, 114.3000 mm) | | Point 3: | (15.8750 mm, 114.3000 mm) | | Point 4: | (34.9250 mm, 101.6000 mm) | | Point 5: | (34.9250 mm, 98.4250 mm) | | Point 6: | (12.7000 mm, 76.2000 mm) | | Point 7: | (0.0000 mm, 0.0000 mm) | | Width: | 4.0000 inches (101.6000 mm) | | Height: | 4.5000 inches (114.3000 mm) |
