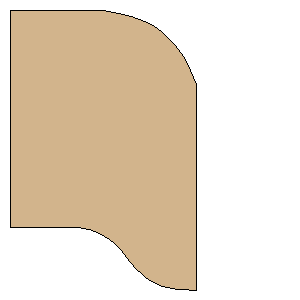

Master_Blaster.rkt Freeform Fin Freeform Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Freeform Fin Set | | Material: | Balsa |
Download as PDF | Point 1: | (0.0000 mm, 88.9000 mm) | | Point 2: | (25.6408 mm, 88.8090 mm) | | Point 3: | (27.9230 mm, 88.9036 mm) | | Point 4: | (30.1875 mm, 89.2029 mm) | | Point 5: | (32.4160 mm, 89.7044 mm) | | Point 6: | (34.5905 mm, 90.4041 mm) | | Point 7: | (36.6932 mm, 91.2963 mm) | | Point 8: | (38.7074 mm, 92.3738 mm) | | Point 9: | (40.6165 mm, 93.6279 mm) | | Point 10: | (42.4053 mm, 95.0484 mm) | | Point 11: | (44.0592 mm, 96.6239 mm) | | Point 12: | (45.5649 mm, 98.3416 mm) | | Point 13: | (48.9488 mm, 102.5710 mm) | | Point 14: | (51.8063 mm, 105.7590 mm) | | Point 15: | (53.2639 mm, 107.2560 mm) | | Point 16: | (54.8397 mm, 108.6280 mm) | | Point 17: | (56.5229 mm, 109.8660 mm) | | Point 18: | (58.3022 mm, 110.9610 mm) | | Point 19: | (60.1655 mm, 111.9070 mm) | | Point 20: | (62.1002 mm, 112.6960 mm) | | Point 21: | (64.0932 mm, 113.3240 mm) | | Point 22: | (66.1311 mm, 113.7850 mm) | | Point 23: | (68.2000 mm, 114.0780 mm) | | Point 24: | (70.2859 mm, 114.1990 mm) | | Point 25: | (76.2000 mm, 114.3000 mm) | | Point 26: | (76.2000 mm, 30.3525 mm) | | Point 27: | (72.5642 mm, 21.9322 mm) | | Point 28: | (70.8949 mm, 18.9490 mm) | | Point 29: | (68.9649 mm, 16.1274 mm) | | Point 30: | (66.7898 mm, 13.4901 mm) | | Point 31: | (64.3870 mm, 11.0584 mm) | | Point 32: | (61.7760 mm, 8.8519 mm) | | Point 33: | (58.9776 mm, 6.8883 mm) | | Point 34: | (56.0146 mm, 5.1834 mm) | | Point 35: | (52.9106 mm, 3.7510 mm) | | Point 36: | (49.6907 mm, 2.6026 mm) | | Point 37: | (46.3809 mm, 1.7474 mm) | | Point 38: | (38.1000 mm, 0.0000 mm) | | Point 39: | (0.0000 mm, 0.0000 mm) | | Width: | 3.5000 inches (88.9000 mm) | | Height: | 4.5000 inches (114.3000 mm) |
