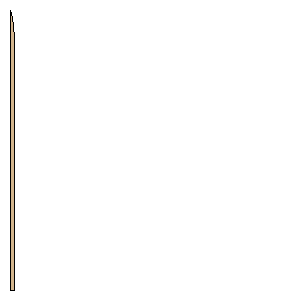

Aerobee_150_Standard.rkt Freefor Freeform Fin SetManufacturer: | Custom | Part Number: | | Style: | Freeform Fin Set | Material: | Balsa |
Download as PDF Point 1: | (0.0000 mm, 218.4400 mm) | Point 2: | (3.1750 mm, 218.4400 mm) | Point 3: | (3.1750 mm, 18.9538 mm) | Point 4: | (3.1598 mm, 17.7094 mm) | Point 5: | (3.1140 mm, 16.4658 mm) | Point 6: | (3.0379 mm, 15.2237 mm) | Point 7: | (2.9313 mm, 13.9838 mm) | Point 8: | (2.7944 mm, 12.7469 mm) | Point 9: | (2.6272 mm, 11.5137 mm) | Point 10: | (2.4299 mm, 10.2850 mm) | Point 11: | (2.2025 mm, 9.0614 mm) | Point 12: | (1.9453 mm, 7.8439 mm) | Point 13: | (1.6582 mm, 6.6330 mm) | Point 14: | (0.0000 mm, 0.0000 mm) | Width: | 8.6000 inches (218.4400 mm) | Height: | 8.6000 inches (218.4400 mm) |
