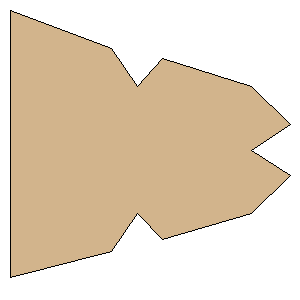

Scrambler Freeform Fin Set Freeform Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Freeform Fin Set | | Material: | Balsa |
Download as PDF | Point 1: | (0.0000 mm, 66.6750 mm) | | Point 2: | (25.4000 mm, 60.3250 mm) | | Point 3: | (31.7500 mm, 50.8000 mm) | | Point 4: | (38.1000 mm, 57.1500 mm) | | Point 5: | (60.3250 mm, 50.8000 mm) | | Point 6: | (69.8500 mm, 41.2750 mm) | | Point 7: | (60.3250 mm, 34.9250 mm) | | Point 8: | (69.8500 mm, 28.5750 mm) | | Point 9: | (60.3250 mm, 19.0500 mm) | | Point 10: | (38.0824 mm, 12.1180 mm) | | Point 11: | (31.7500 mm, 19.0500 mm) | | Point 12: | (25.4000 mm, 9.5250 mm) | | Point 13: | (0.0000 mm, 0.0000 mm) | | Width: | 2.7500 inches (69.8500 mm) | | Height: | 2.6250 inches (66.6750 mm) |
