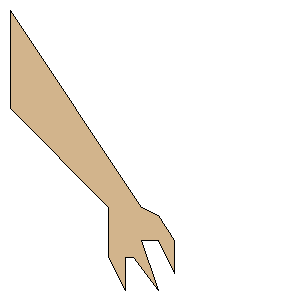

Mr, Eagen (sounds like Mr. EGGen Freeform Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Freeform Fin Set | | Material: | Balsa |
Download as PDF | Point 1: | (0.0000 mm, 38.1000 mm) | | Point 2: | (38.1000 mm, 76.2000 mm) | | Point 3: | (38.1000 mm, 95.2500 mm) | | Point 4: | (44.4500 mm, 107.9500 mm) | | Point 5: | (44.4500 mm, 95.2500 mm) | | Point 6: | (47.6250 mm, 95.2500 mm) | | Point 7: | (57.1500 mm, 107.9500 mm) | | Point 8: | (50.8000 mm, 88.9000 mm) | | Point 9: | (57.1500 mm, 88.9000 mm) | | Point 10: | (63.5000 mm, 101.6000 mm) | | Point 11: | (63.5000 mm, 88.9000 mm) | | Point 12: | (57.1500 mm, 79.3750 mm) | | Point 13: | (50.8000 mm, 76.2000 mm) | | Point 14: | (0.0000 mm, 0.0000 mm) | | Width: | 2.5000 inches (63.5000 mm) | | Height: | 4.2500 inches (107.9500 mm) |
