Estes - Orbital Transport Trapez Trapezoid Fin Set

Manufacturer:Custom
Part Number:
Style:Trapezoid Fin Set
Material:Balsa

Download as PDF

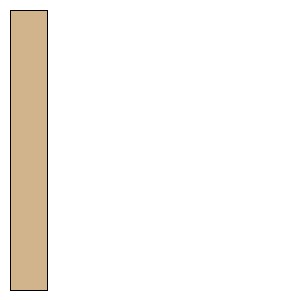

Root Chord:0.6250 inches (15.8750 mm)
Tip Chord:0.6250 inches (15.8750 mm)
Sweep Distance:0.0000 inches (0.0000 mm)
SemiSpan:0.0833 inches (2.1158 mm)
Point 1:(0.0000 mm, 0.0000 mm)
Point 2:(2.1158 mm, 0.0000 mm)
Point 3:(2.1158 mm, 15.8750 mm)
Point 4:(0.0000 mm, 15.8750 mm)
Width:0.0833 inches (2.1158 mm)
Height:0.6250 inches (15.8750 mm)
