Rocketry Parts Database >> Fins >>

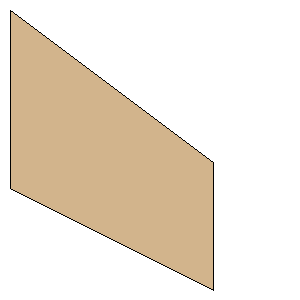

Piggy Bank Trapezoid Fin Set Trapezoid Fin Set

Manufacturer:Custom
Part Number:
Style:Trapezoid Fin Set
Material:Balsa

Download as PDF

Root Chord:3.5000 inches (88.9000 mm)
Tip Chord:2.5000 inches (63.5000 mm)
Sweep Distance:3.0000 inches (76.2000 mm)
SemiSpan:4.0000 inches (101.6000 mm)
Point 1:(0.0000 mm, 0.0000 mm)
Point 2:(101.6000 mm, 76.2000 mm)
Point 3:(101.6000 mm, 139.7000 mm)
Point 4:(0.0000 mm, 88.9000 mm)
Width:4.0000 inches (101.6000 mm)
Height:5.5000 inches (139.7000 mm)
