Rocketry Parts Database >> Fins >>

Custom Balsa Trapezoid Fin Set

Manufacturer:Custom
Part Number:
Style:Trapezoid Fin Set
Material:Balsa

Download as PDF

Root Chord:9.6500 inches (245.1100 mm)
Tip Chord:9.2500 inches (234.9500 mm)
Sweep Distance:0.1250 inches (3.1750 mm)
SemiSpan:0.1250 inches (3.1750 mm)

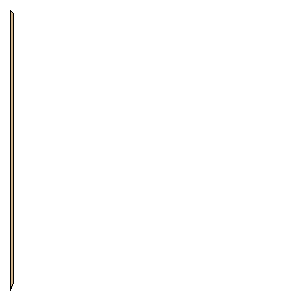

Point 1:(0.0000 mm, 0.0000 mm)
Point 2:(3.1750 mm, 3.1750 mm)
Point 3:(3.1750 mm, 238.1250 mm)
Point 4:(0.0000 mm, 245.1100 mm)
Width:0.1250 inches (3.1750 mm)
Height:9.6500 inches (245.1100 mm)
