Rocketry Parts Database >> Fins >>

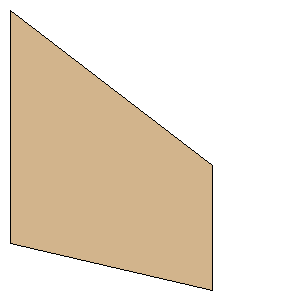

Custom Balsa Trapezoid Fin Set

Manufacturer:Custom
Part Number:
Style:Trapezoid Fin Set
Material:Balsa

Download as PDF

Root Chord:1.8750 inches (47.6250 mm)
Tip Chord:1.0000 inches (25.4000 mm)
Sweep Distance:1.2500 inches (31.7500 mm)
SemiSpan:1.6250 inches (41.2750 mm)
Point 1:(0.0000 mm, 0.0000 mm)
Point 2:(41.2750 mm, 31.7500 mm)
Point 3:(41.2750 mm, 57.1500 mm)
Point 4:(0.0000 mm, 47.6250 mm)
Width:1.6250 inches (41.2750 mm)
Height:2.2500 inches (57.1500 mm)
