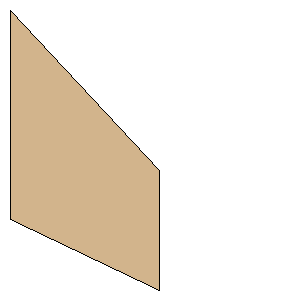

DerMeanMax.rkt Trapezoid Fin Set Trapezoid Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Trapezoid Fin Set | | Material: | Balsa |
Download as PDF | Root Chord: | 2.6250 inches (66.6750 mm) | | Tip Chord: | 1.5000 inches (38.1000 mm) | | Sweep Distance: | 2.0002 inches (50.8051 mm) | | SemiSpan: | 1.8750 inches (47.6250 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (47.6250 mm, 50.8051 mm) | | Point 3: | (47.6250 mm, 88.9051 mm) | | Point 4: | (0.0000 mm, 66.6750 mm) | | Width: | 1.8750 inches (47.6250 mm) | | Height: | 3.5002 inches (88.9051 mm) |
