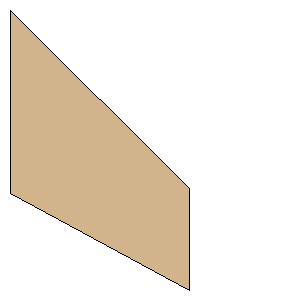

Semroc-Baby Orion.rkt Trapezoid Trapezoid Fin SetManufacturer: | Custom | Part Number: | | Style: | Trapezoid Fin Set | Material: | Balsa |
Download as PDF Root Chord: | 1.3500 inches (34.2900 mm) | Tip Chord: | 0.7500 inches (19.0500 mm) | Sweep Distance: | 1.3129 inches (33.3477 mm) | SemiSpan: | 1.3250 inches (33.6550 mm) | Point 1: | (0.0000 mm, 0.0000 mm) | Point 2: | (33.6550 mm, 33.3477 mm) | Point 3: | (33.6550 mm, 52.3977 mm) | Point 4: | (0.0000 mm, 34.2900 mm) | Width: | 1.3250 inches (33.6550 mm) | Height: | 2.0629 inches (52.3977 mm) |
