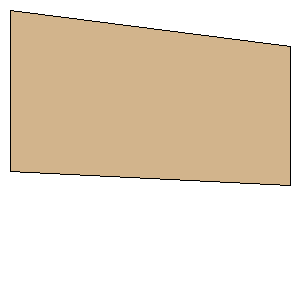

Estes Satellite Interceptor Trap Trapezoid Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Trapezoid Fin Set | | Material: | Balsa |
Download as PDF | Root Chord: | 1.1000 inches (27.9400 mm) | | Tip Chord: | 0.9500 inches (24.1300 mm) | | Sweep Distance: | 0.2500 inches (6.3500 mm) | | SemiSpan: | 1.9100 inches (48.5140 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (48.5140 mm, 6.3500 mm) | | Point 3: | (48.5140 mm, 30.4800 mm) | | Point 4: | (0.0000 mm, 27.9400 mm) | | Width: | 1.9100 inches (48.5140 mm) | | Height: | 1.2000 inches (30.4800 mm) |
