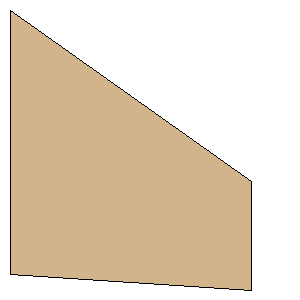

Estes X-Ray Trapezoid Fin Set Trapezoid Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Trapezoid Fin Set | | Material: | Balsa |
Download as PDF | Root Chord: | 2.1250 inches (53.9750 mm) | | Tip Chord: | 0.8750 inches (22.2250 mm) | | Sweep Distance: | 1.3749 inches (34.9225 mm) | | SemiSpan: | 1.9390 inches (49.2506 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (49.2506 mm, 34.9225 mm) | | Point 3: | (49.2506 mm, 57.1475 mm) | | Point 4: | (0.0000 mm, 53.9750 mm) | | Width: | 1.9390 inches (49.2506 mm) | | Height: | 2.2499 inches (57.1475 mm) |
