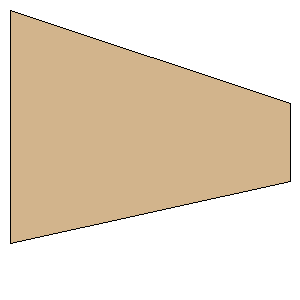

Estes Mark-IV Trapezoid Fin Set Trapezoid Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Trapezoid Fin Set | | Material: | Balsa |
Download as PDF | Root Chord: | 1.8750 inches (47.6250 mm) | | Tip Chord: | 0.6250 inches (15.8750 mm) | | Sweep Distance: | 0.7500 inches (19.0500 mm) | | SemiSpan: | 2.2500 inches (57.1500 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (57.1500 mm, 19.0500 mm) | | Point 3: | (57.1500 mm, 34.9250 mm) | | Point 4: | (0.0000 mm, 47.6250 mm) | | Width: | 2.2500 inches (57.1500 mm) | | Height: | 1.8750 inches (47.6250 mm) |
