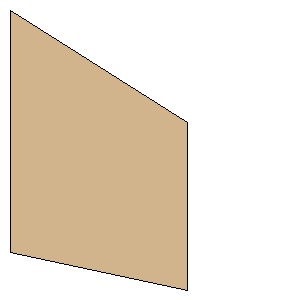

oop_fatcat_galactic_maruader.rkt Trapezoid Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Trapezoid Fin Set | | Material: | Balsa |
Download as PDF | Root Chord: | 3.2500 inches (82.5500 mm) | | Tip Chord: | 2.2500 inches (57.1500 mm) | | Sweep Distance: | 1.5000 inches (38.1000 mm) | | SemiSpan: | 2.3750 inches (60.3250 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (60.3250 mm, 38.1000 mm) | | Point 3: | (60.3250 mm, 95.2500 mm) | | Point 4: | (0.0000 mm, 82.5500 mm) | | Width: | 2.3750 inches (60.3250 mm) | | Height: | 3.7500 inches (95.2500 mm) |
