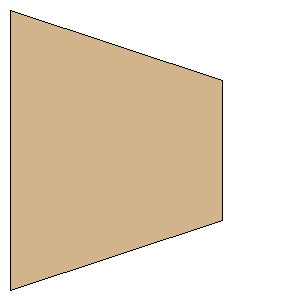

Sceam.rkt Trapezoid Fin Set Trapezoid Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Trapezoid Fin Set | | Material: | Balsa |
Download as PDF | Root Chord: | 6.0000 inches (152.4000 mm) | | Tip Chord: | 3.0000 inches (76.2000 mm) | | Sweep Distance: | 1.5000 inches (38.1000 mm) | | SemiSpan: | 4.5520 inches (115.6208 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (115.6208 mm, 38.1000 mm) | | Point 3: | (115.6208 mm, 114.3000 mm) | | Point 4: | (0.0000 mm, 152.4000 mm) | | Width: | 4.5520 inches (115.6208 mm) | | Height: | 6.0000 inches (152.4000 mm) |
