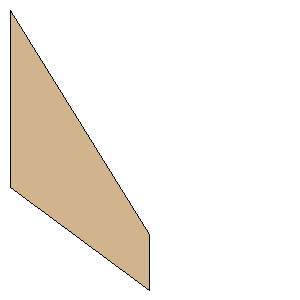

Estes Astron Shrike Trapezoid Fi Trapezoid Fin SetManufacturer: | Custom | Part Number: | | Style: | Trapezoid Fin Set | Material: | Balsa |
Download as PDF Root Chord: | 2.8500 inches (72.3900 mm) | Tip Chord: | 0.9000 inches (22.8600 mm) | Sweep Distance: | 3.6008 inches (91.4603 mm) | SemiSpan: | 2.2500 inches (57.1500 mm) | Point 1: | (0.0000 mm, 0.0000 mm) | Point 2: | (57.1500 mm, 91.4603 mm) | Point 3: | (57.1500 mm, 114.3203 mm) | Point 4: | (0.0000 mm, 72.3900 mm) | Width: | 2.2500 inches (57.1500 mm) | Height: | 4.5008 inches (114.3203 mm) |
