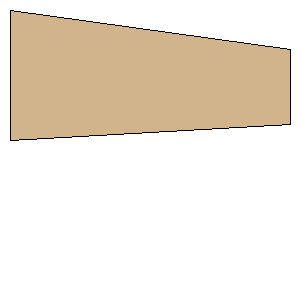

Bell X1 Trapezoid Fin Set Trapezoid Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Trapezoid Fin Set | | Material: | Balsa |
Download as PDF | Root Chord: | 2.1000 inches (53.3400 mm) | | Tip Chord: | 1.2000 inches (30.4800 mm) | | Sweep Distance: | 0.6324 inches (16.0630 mm) | | SemiSpan: | 4.5000 inches (114.3000 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (114.3000 mm, 16.0630 mm) | | Point 3: | (114.3000 mm, 46.5430 mm) | | Point 4: | (0.0000 mm, 53.3400 mm) | | Width: | 4.5000 inches (114.3000 mm) | | Height: | 2.1000 inches (53.3400 mm) |
