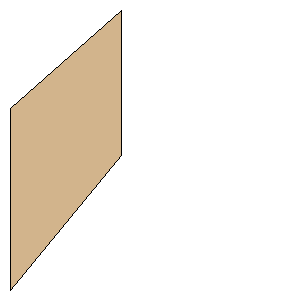

Estes Satellite Interceptor Trap Trapezoid Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Trapezoid Fin Set | | Material: | Balsa |
Download as PDF | Root Chord: | 2.3500 inches (59.6900 mm) | | Tip Chord: | 1.8900 inches (48.0060 mm) | | Sweep Distance: | -1.2800 inches (-32.5120 mm) | | SemiSpan: | 1.4400 inches (36.5760 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (36.5760 mm, -32.5120 mm) | | Point 3: | (36.5760 mm, 15.4940 mm) | | Point 4: | (0.0000 mm, 59.6900 mm) | | Width: | 1.4400 inches (36.5760 mm) | | Height: | 3.6300 inches (92.2020 mm) |
