What If BGM-71 TOW (Medium) Free Freeform Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Freeform Fin Set | | Material: | Basswood |

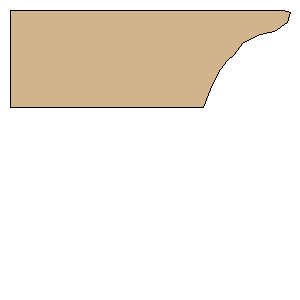

Download as PDF | Point 1: | (0.0000 mm, 38.1802 mm) | | Point 2: | (75.9910 mm, 38.1802 mm) | | Point 3: | (78.6871 mm, 31.1177 mm) | | Point 4: | (82.0971 mm, 24.6766 mm) | | Point 5: | (85.1282 mm, 20.1300 mm) | | Point 6: | (88.1593 mm, 17.4777 mm) | | Point 7: | (91.9482 mm, 12.9311 mm) | | Point 8: | (98.3893 mm, 9.5211 mm) | | Point 9: | (104.0726 mm, 8.3844 mm) | | Point 10: | (108.9981 mm, 4.9744 mm) | | Point 11: | (110.1348 mm, 0.8067 mm) | | Point 12: | (107.4826 mm, 0.0489 mm) | | Point 13: | (0.0000 mm, 0.0000 mm) | | Width: | 4.3360 inches (110.1348 mm) | | Height: | 1.5032 inches (38.1802 mm) |
