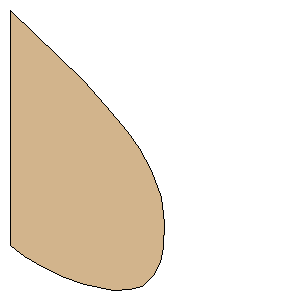

Margin of Error Freeform Fin Set Freeform Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Freeform Fin Set | | Material: | Basswood |
Download as PDF | Point 1: | (0.0000 mm, 203.2000 mm) | | Point 2: | (12.7000 mm, 212.7250 mm) | | Point 3: | (28.5750 mm, 222.2500 mm) | | Point 4: | (47.2229 mm, 230.1932 mm) | | Point 5: | (63.8322 mm, 236.5048 mm) | | Point 6: | (88.9000 mm, 241.3000 mm) | | Point 7: | (104.0267 mm, 241.1554 mm) | | Point 8: | (114.3000 mm, 238.1250 mm) | | Point 9: | (123.8250 mm, 228.6000 mm) | | Point 10: | (129.9372 mm, 217.2380 mm) | | Point 11: | (131.9304 mm, 204.6149 mm) | | Point 12: | (133.3500 mm, 184.1500 mm) | | Point 13: | (130.1750 mm, 161.9250 mm) | | Point 14: | (122.2387 mm, 138.0701 mm) | | Point 15: | (111.9992 mm, 119.5752 mm) | | Point 16: | (101.6000 mm, 104.7750 mm) | | Point 17: | (82.5500 mm, 82.5500 mm) | | Point 18: | (63.5000 mm, 60.3250 mm) | | Point 19: | (0.0000 mm, 0.0000 mm) | | Width: | 8.0000 inches (203.2000 mm) | | Height: | 9.5000 inches (241.3000 mm) |
