Rocketry Parts Database >> Fins >>

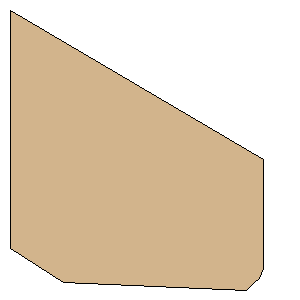

Semroc-SLS Javelin-29.rkt Freefo Freeform Fin Set

Manufacturer:Custom
Part Number:
Style:Freeform Fin Set
Material:Basswood

Download as PDF

Point 1:(0.0000 mm, 64.0080 mm)
Point 2:(14.4780 mm, 73.1520 mm)
Point 3:(63.5000 mm, 75.1840 mm)
Point 4:(65.7860 mm, 73.1520 mm)
Point 5:(67.0560 mm, 72.1360 mm)
Point 6:(68.0720 mm, 69.3411 mm)
Point 7:(68.0720 mm, 40.1841 mm)
Point 8:(0.0000 mm, 0.0000 mm)
Width:2.6800 inches (68.0720 mm)
Height:2.9600 inches (75.1840 mm)
