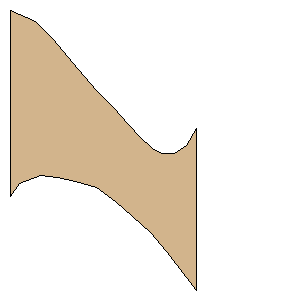

Rocksim 9 file Freeform Fin Set Freeform Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Freeform Fin Set | | Material: | Basswood |
Download as PDF | Point 1: | (0.0000 mm, 66.0400 mm) | | Point 2: | (3.4634 mm, 61.1364 mm) | | Point 3: | (10.7895 mm, 58.5220 mm) | | Point 4: | (16.9384 mm, 58.9950 mm) | | Point 5: | (23.0872 mm, 60.4140 mm) | | Point 6: | (30.6551 mm, 62.7789 mm) | | Point 7: | (37.2769 mm, 67.5088 mm) | | Point 8: | (43.1007 mm, 72.8881 mm) | | Point 9: | (49.6138 mm, 78.6349 mm) | | Point 10: | (55.3606 mm, 85.1480 mm) | | Point 11: | (66.0400 mm, 98.8865 mm) | | Point 12: | (66.0400 mm, 41.9100 mm) | | Point 13: | (62.2568 mm, 47.9852 mm) | | Point 14: | (58.0425 mm, 50.6671 mm) | | Point 15: | (53.8281 mm, 50.6671 mm) | | Point 16: | (50.3800 mm, 48.7515 mm) | | Point 17: | (45.7826 mm, 44.5372 mm) | | Point 18: | (41.9514 mm, 40.3228 mm) | | Point 19: | (36.5877 mm, 34.5760 mm) | | Point 20: | (30.4577 mm, 28.4461 mm) | | Point 21: | (22.0291 mm, 18.4849 mm) | | Point 22: | (15.1329 mm, 10.0562 mm) | | Point 23: | (8.8335 mm, 4.2168 mm) | | Point 24: | (0.0000 mm, 0.0000 mm) | | Width: | 2.6000 inches (66.0400 mm) | | Height: | 3.8932 inches (98.8865 mm) |
