Rocketry Parts Database >> Fins >>

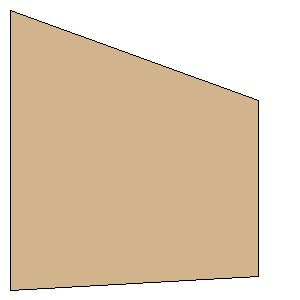

Saturn V Sport Scale Trapezoid F Trapezoid Fin Set

Manufacturer:Custom
Part Number:
Style:Trapezoid Fin Set
Material:Basswood

Download as PDF

Root Chord:3.3750 inches (85.7250 mm)
Tip Chord:2.1250 inches (53.9750 mm)
Sweep Distance:1.0919 inches (27.7343 mm)
SemiSpan:3.0000 inches (76.2000 mm)
Point 1:(0.0000 mm, 0.0000 mm)
Point 2:(76.2000 mm, 27.7343 mm)
Point 3:(76.2000 mm, 81.7093 mm)
Point 4:(0.0000 mm, 85.7250 mm)
Width:3.0000 inches (76.2000 mm)
Height:3.3750 inches (85.7250 mm)
