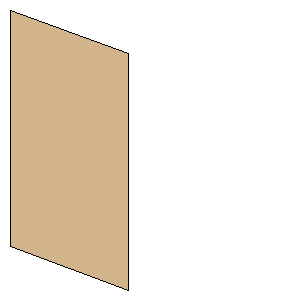

Saturn IV Trapezoid Fin Set Trapezoid Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Trapezoid Fin Set | | Material: | Basswood |
Download as PDF | Root Chord: | 4.0000 inches (101.6000 mm) | | Tip Chord: | 4.0000 inches (101.6000 mm) | | Sweep Distance: | 0.7279 inches (18.4887 mm) | | SemiSpan: | 2.0000 inches (50.8000 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (50.8000 mm, 18.4887 mm) | | Point 3: | (50.8000 mm, 120.0887 mm) | | Point 4: | (0.0000 mm, 101.6000 mm) | | Width: | 2.0000 inches (50.8000 mm) | | Height: | 4.7279 inches (120.0887 mm) |
