| Rocketry Parts Database >> Fins >> |

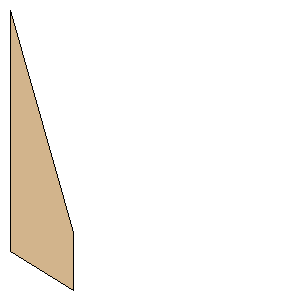

Exocet Trapezoid Fin Set Trapezoid Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Trapezoid Fin Set | | Material: | Basswood |
Download as PDF | Root Chord: | 3.5660 inches (90.5764 mm) | | Tip Chord: | 0.8450 inches (21.4630 mm) | | Sweep Distance: | 3.2842 inches (83.4187 mm) | | SemiSpan: | 0.9380 inches (23.8252 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (23.8252 mm, 83.4187 mm) | | Point 3: | (23.8252 mm, 104.8817 mm) | | Point 4: | (0.0000 mm, 90.5764 mm) | | Width: | 0.9380 inches (23.8252 mm) | | Height: | 4.1292 inches (104.8817 mm) |
