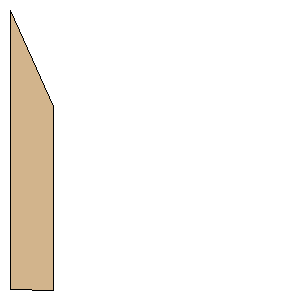

oop_aardvark_aa9_amos.rkt Trapez Trapezoid Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Trapezoid Fin Set | | Material: | Basswood |
Download as PDF | Root Chord: | 4.1880 inches (106.3752 mm) | | Tip Chord: | 2.7500 inches (69.8500 mm) | | Sweep Distance: | 1.4381 inches (36.5277 mm) | | SemiSpan: | 0.6560 inches (16.6624 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (16.6624 mm, 36.5277 mm) | | Point 3: | (16.6624 mm, 106.3777 mm) | | Point 4: | (0.0000 mm, 106.3752 mm) | | Width: | 0.6560 inches (16.6624 mm) | | Height: | 4.1881 inches (106.3777 mm) |
