| Rocketry Parts Database >> Fins >> |

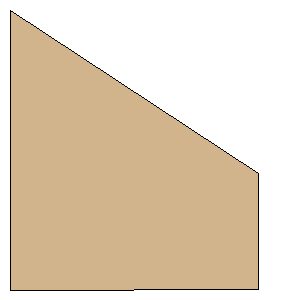

Exocet Trapezoid Fin Set Trapezoid Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Trapezoid Fin Set | | Material: | Basswood |
Download as PDF | Root Chord: | 0.8450 inches (21.4630 mm) | | Tip Chord: | 0.3520 inches (8.9408 mm) | | Sweep Distance: | 0.4929 inches (12.5197 mm) | | SemiSpan: | 0.7510 inches (19.0754 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (19.0754 mm, 12.5197 mm) | | Point 3: | (19.0754 mm, 21.4605 mm) | | Point 4: | (0.0000 mm, 21.4630 mm) | | Width: | 0.7510 inches (19.0754 mm) | | Height: | 0.8450 inches (21.4630 mm) |
