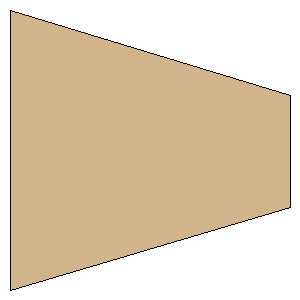

MicroBee Trapezoid Fin Set Trapezoid Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Trapezoid Fin Set | | Material: | Basswood |
Download as PDF | Root Chord: | 1.2500 inches (31.7500 mm) | | Tip Chord: | 0.5000 inches (12.7000 mm) | | Sweep Distance: | 0.3819 inches (9.7003 mm) | | SemiSpan: | 1.2500 inches (31.7500 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (31.7500 mm, 9.7003 mm) | | Point 3: | (31.7500 mm, 22.4003 mm) | | Point 4: | (0.0000 mm, 31.7500 mm) | | Width: | 1.2500 inches (31.7500 mm) | | Height: | 1.2500 inches (31.7500 mm) |
