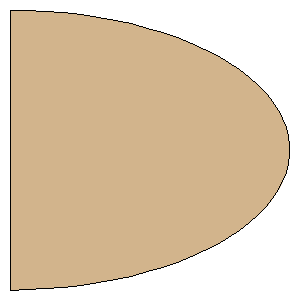

Andromeda Elliptical Fin Set Elliptical Fin SetManufacturer: | Custom | Part Number: | | Style: | Elliptical Fin Set | Material: | Birch |
Download as PDF Point 1: | (0.0000 mm, 0.0000 mm) | Point 2: | (0.0000 mm, 0.0000 mm) | Point 3: | (0.0641 mm, 0.0010 mm) | Point 4: | (0.1279 mm, 0.0041 mm) | Point 5: | (0.1912 mm, 0.0092 mm) | Point 6: | (0.2537 mm, 0.0164 mm) | Point 7: | (0.3151 mm, 0.0255 mm) | Point 8: | (0.3753 mm, 0.0365 mm) | Point 9: | (0.4339 mm, 0.0495 mm) | Point 10: | (0.4907 mm, 0.0643 mm) | Point 11: | (0.5455 mm, 0.0810 mm) | Point 12: | (0.5981 mm, 0.0993 mm) | Point 13: | (0.6482 mm, 0.1193 mm) | Point 14: | (0.6957 mm, 0.1408 mm) | Point 15: | (0.7403 mm, 0.1638 mm) | Point 16: | (0.7818 mm, 0.1883 mm) | Point 17: | (0.8202 mm, 0.2139 mm) | Point 18: | (0.8551 mm, 0.2408 mm) | Point 19: | (0.8866 mm, 0.2687 mm) | Point 20: | (0.9144 mm, 0.2976 mm) | Point 21: | (0.9385 mm, 0.3273 mm) | Point 22: | (0.9587 mm, 0.3577 mm) | Point 23: | (0.9749 mm, 0.3887 mm) | Point 24: | (0.9872 mm, 0.4202 mm) | Point 25: | (0.9954 mm, 0.4520 mm) | Point 26: | (0.9995 mm, 0.4840 mm) | Point 27: | (0.9995 mm, 0.5160 mm) | Point 28: | (0.9954 mm, 0.5480 mm) | Point 29: | (0.9872 mm, 0.5798 mm) | Point 30: | (0.9749 mm, 0.6113 mm) | Point 31: | (0.9587 mm, 0.6423 mm) | Point 32: | (0.9385 mm, 0.6727 mm) | Point 33: | (0.9144 mm, 0.7024 mm) | Point 34: | (0.8866 mm, 0.7313 mm) | Point 35: | (0.8551 mm, 0.7592 mm) | Point 36: | (0.8202 mm, 0.7861 mm) | Point 37: | (0.7818 mm, 0.8117 mm) | Point 38: | (0.7403 mm, 0.8362 mm) | Point 39: | (0.6957 mm, 0.8592 mm) | Point 40: | (0.6482 mm, 0.8807 mm) | Point 41: | (0.5981 mm, 0.9007 mm) | Point 42: | (0.5455 mm, 0.9190 mm) | Point 43: | (0.4907 mm, 0.9357 mm) | Point 44: | (0.4339 mm, 0.9505 mm) | Point 45: | (0.3753 mm, 0.9635 mm) | Point 46: | (0.3151 mm, 0.9745 mm) | Point 47: | (0.2537 mm, 0.9836 mm) | Point 48: | (0.1912 mm, 0.9908 mm) | Point 49: | (0.1279 mm, 0.9959 mm) | Point 50: | (0.0641 mm, 0.9990 mm) | Point 51: | (0.0000 mm, 1.0000 mm) | Point 52: | (0.0000 mm, 1.0000 mm) | Width: | 0.0393 inches (0.9995 mm) | Height: | 0.0394 inches (1.0000 mm) |
