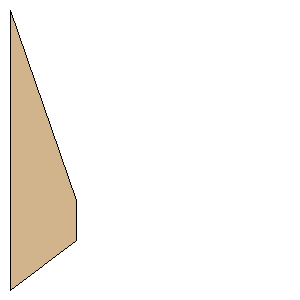

binder_design_jaguar_38mm.rkt Tr Trapezoid Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Trapezoid Fin Set | | Material: | Birch |
Download as PDF | Root Chord: | 10.5000 inches (266.7000 mm) | | Tip Chord: | 1.5000 inches (38.1000 mm) | | Sweep Distance: | 7.1250 inches (180.9750 mm) | | SemiSpan: | 2.5000 inches (63.5000 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (63.5000 mm, 180.9750 mm) | | Point 3: | (63.5000 mm, 219.0750 mm) | | Point 4: | (0.0000 mm, 266.7000 mm) | | Width: | 2.5000 inches (63.5000 mm) | | Height: | 10.5000 inches (266.7000 mm) |
