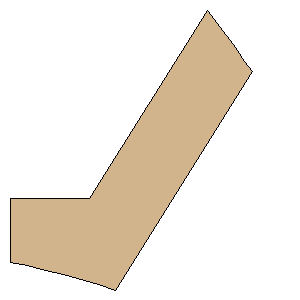

Custom Cardboard Freeform Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Freeform Fin Set | | Material: | Cardboard |
Download as PDF | Point 1: | (0.0000 mm, 2.7658 mm) | | Point 2: | (0.7688 mm, 2.9263 mm) | | Point 3: | (1.5347 mm, 3.1022 mm) | | Point 4: | (2.2960 mm, 3.2939 mm) | | Point 5: | (3.8062 mm, 3.7248 mm) | | Point 6: | (4.5543 mm, 3.9639 mm) | | Point 7: | (10.4717 mm, -5.4741 mm) | | Point 8: | (10.1577 mm, -5.9241 mm) | | Point 9: | (9.8410 mm, -6.3716 mm) | | Point 10: | (9.5211 mm, -6.8174 mm) | | Point 11: | (9.1979 mm, -7.2607 mm) | | Point 12: | (8.5444 mm, -8.1417 mm) | | Point 13: | (3.4422 mm, 0.0000 mm) | | Point 14: | (0.0000 mm, 0.0000 mm) | | Width: | 0.4123 inches (10.4717 mm) | | Height: | 0.4766 inches (12.1056 mm) |
