Cosmodrome Rocketry Delta E Free Freeform Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Freeform Fin Set | | Material: | Custom |

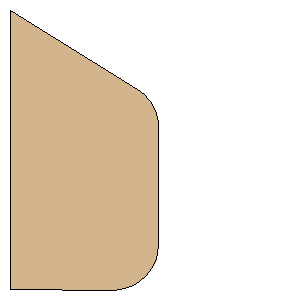

Download as PDF | Point 1: | (0.0000 mm, 158.7500 mm) | | Point 2: | (58.8304 mm, 159.0040 mm) | | Point 3: | (62.8179 mm, 158.7070 mm) | | Point 4: | (66.7094 mm, 157.7870 mm) | | Point 5: | (70.4083 mm, 156.2680 mm) | | Point 6: | (73.8230 mm, 154.1880 mm) | | Point 7: | (76.8689 mm, 151.5970 mm) | | Point 8: | (79.4704 mm, 148.5600 mm) | | Point 9: | (81.5631 mm, 145.1530 mm) | | Point 10: | (83.0952 mm, 141.4600 mm) | | Point 11: | (84.0286 mm, 137.5710 mm) | | Point 12: | (84.3402 mm, 133.5850 mm) | | Point 13: | (84.2880 mm, 66.6907 mm) | | Point 14: | (84.1693 mm, 64.1057 mm) | | Point 15: | (83.7883 mm, 61.5461 mm) | | Point 16: | (83.1487 mm, 59.0387 mm) | | Point 17: | (82.2574 mm, 56.6093 mm) | | Point 18: | (81.1235 mm, 54.2832 mm) | | Point 19: | (79.7588 mm, 52.0845 mm) | | Point 20: | (78.1775 mm, 50.0362 mm) | | Point 21: | (76.3960 mm, 48.1593 mm) | | Point 22: | (72.3081 mm, 44.9961 mm) | | Point 23: | (0.0000 mm, 0.0000 mm) | | Width: | 6.2500 inches (158.7500 mm) | | Height: | 6.2600 inches (159.0040 mm) |
