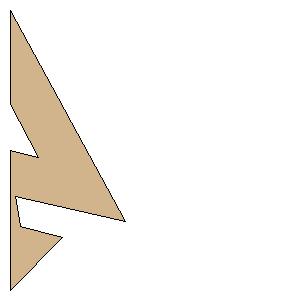

FS2-3in.rkt Freeform Fin Set Freeform Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Freeform Fin Set | | Material: | Fir (Douglas) |
Download as PDF | Point 1: | (0.0000 mm, 85.7250 mm) | | Point 2: | (25.4000 mm, 133.3500 mm) | | Point 3: | (0.0000 mm, 127.0000 mm) | | Point 4: | (0.0000 mm, 254.0000 mm) | | Point 5: | (47.6250 mm, 206.3750 mm) | | Point 6: | (9.5250 mm, 196.8500 mm) | | Point 7: | (4.7625 mm, 169.0688 mm) | | Point 8: | (104.7750 mm, 192.0875 mm) | | Point 9: | (0.0000 mm, 0.0000 mm) | | Width: | 4.1250 inches (104.7750 mm) | | Height: | 10.0000 inches (254.0000 mm) |
