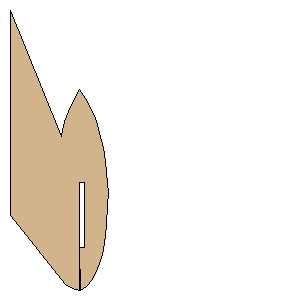

Circulus -2.26in (Final).rkt Fre Freeform Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Freeform Fin Set | | Material: | Fir (Douglas) |
Download as PDF | Point 1: | (0.0000 mm, 139.7000 mm) | | Point 2: | (38.1000 mm, 186.5313 mm) | | Point 3: | (42.8625 mm, 189.7063 mm) | | Point 4: | (47.6123 mm, 190.5000 mm) | | Point 5: | (47.6250 mm, 117.4750 mm) | | Point 6: | (50.8000 mm, 117.4750 mm) | | Point 7: | (50.8000 mm, 161.9250 mm) | | Point 8: | (47.6250 mm, 161.9250 mm) | | Point 9: | (47.6250 mm, 190.5000 mm) | | Point 10: | (52.3875 mm, 188.1188 mm) | | Point 11: | (56.3563 mm, 183.3563 mm) | | Point 12: | (58.7375 mm, 177.8000 mm) | | Point 13: | (61.1188 mm, 172.2438 mm) | | Point 14: | (62.7063 mm, 166.6875 mm) | | Point 15: | (64.2938 mm, 158.7500 mm) | | Point 16: | (65.0875 mm, 153.1938 mm) | | Point 17: | (65.8813 mm, 146.0500 mm) | | Point 18: | (66.6750 mm, 133.3500 mm) | | Point 19: | (66.6750 mm, 123.8250 mm) | | Point 20: | (65.8813 mm, 111.1250 mm) | | Point 21: | (65.0875 mm, 103.2002 mm) | | Point 22: | (63.5000 mm, 93.6625 mm) | | Point 23: | (61.9125 mm, 86.5188 mm) | | Point 24: | (60.3250 mm, 80.9625 mm) | | Point 25: | (57.9438 mm, 73.8188 mm) | | Point 26: | (54.7688 mm, 66.4210 mm) | | Point 27: | (51.5938 mm, 60.3250 mm) | | Point 28: | (47.6250 mm, 53.9750 mm) | | Point 29: | (43.6563 mm, 60.3250 mm) | | Point 30: | (39.6875 mm, 69.0563 mm) | | Point 31: | (37.3063 mm, 76.2000 mm) | | Point 32: | (35.7188 mm, 81.7563 mm) | | Point 33: | (34.7726 mm, 85.7250 mm) | | Point 34: | (0.0000 mm, 0.0000 mm) | | Width: | 5.5000 inches (139.7000 mm) | | Height: | 7.5000 inches (190.5000 mm) |
