| Rocketry Parts Database >> Fins >> |

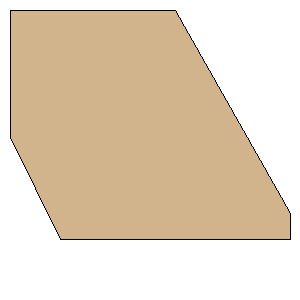

1:52 Saturn V Freeform Fin Set Freeform Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Freeform Fin Set | | Material: | G10 fiberglass |
Download as PDF | Point 1: | (0.0000 mm, 63.5000 mm) | | Point 2: | (25.4000 mm, 114.3000 mm) | | Point 3: | (139.7000 mm, 114.3000 mm) | | Point 4: | (139.7000 mm, 101.6000 mm) | | Point 5: | (82.5500 mm, 0.0000 mm) | | Point 6: | (0.0000 mm, 0.0000 mm) | | Width: | 5.5000 inches (139.7000 mm) | | Height: | 4.5000 inches (114.3000 mm) |
