| Rocketry Parts Database >> Fins >> |

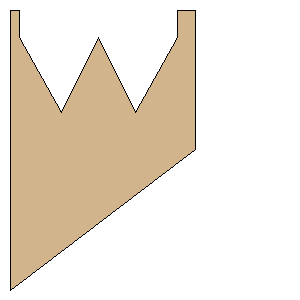

wildthing.rkt Freeform Fin Set Freeform Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Freeform Fin Set | | Material: | G10 Fiberglass |
Download as PDF | Point 1: | (0.0000 mm, 104.2760 mm) | | Point 2: | (69.2658 mm, 51.9494 mm) | | Point 3: | (69.2658 mm, 0.0000 mm) | | Point 4: | (62.3392 mm, 0.0000 mm) | | Point 5: | (62.3392 mm, 10.3899 mm) | | Point 6: | (46.7544 mm, 38.0962 mm) | | Point 7: | (32.9013 mm, 10.3899 mm) | | Point 8: | (19.0481 mm, 38.0962 mm) | | Point 9: | (3.4633 mm, 10.3899 mm) | | Point 10: | (3.4633 mm, 0.0000 mm) | | Point 11: | (0.0000 mm, 0.0000 mm) | | Width: | 4.1054 inches (104.2760 mm) | | Height: | 4.1054 inches (104.2760 mm) |
