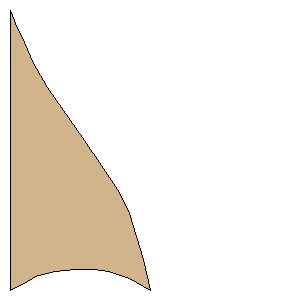

Landshark Freeform Fin Set Freeform Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Freeform Fin Set | | Material: | G10 fiberglass |
Download as PDF | Point 1: | (0.0000 mm, 304.8000 mm) | | Point 2: | (15.2400 mm, 297.1800 mm) | | Point 3: | (27.9400 mm, 289.5600 mm) | | Point 4: | (48.2600 mm, 284.4800 mm) | | Point 5: | (71.1200 mm, 281.9400 mm) | | Point 6: | (91.4400 mm, 281.9400 mm) | | Point 7: | (106.6800 mm, 284.4800 mm) | | Point 8: | (129.5400 mm, 292.1000 mm) | | Point 9: | (152.4000 mm, 304.8000 mm) | | Point 10: | (144.7800 mm, 271.7800 mm) | | Point 11: | (129.5400 mm, 220.9800 mm) | | Point 12: | (116.8400 mm, 195.5800 mm) | | Point 13: | (101.6000 mm, 172.7200 mm) | | Point 14: | (81.2800 mm, 142.2400 mm) | | Point 15: | (58.4200 mm, 109.2200 mm) | | Point 16: | (40.6400 mm, 83.8200 mm) | | Point 17: | (25.4000 mm, 58.4200 mm) | | Point 18: | (15.2400 mm, 35.5600 mm) | | Point 19: | (7.6200 mm, 20.3200 mm) | | Point 20: | (0.0000 mm, 0.0000 mm) | | Width: | 12.0000 inches (304.8000 mm) | | Height: | 12.0000 inches (304.8000 mm) |
