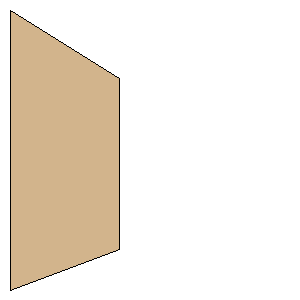

Small Fin Fastie Trapezoid Fin S Trapezoid Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Trapezoid Fin Set | | Material: | G10 phenolic |
Download as PDF | Root Chord: | 5.1250 inches (130.1750 mm) | | Tip Chord: | 3.1250 inches (79.3750 mm) | | Sweep Distance: | 1.2502 inches (31.7551 mm) | | SemiSpan: | 2.0000 inches (50.8000 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (50.8000 mm, 31.7551 mm) | | Point 3: | (50.8000 mm, 111.1301 mm) | | Point 4: | (0.0000 mm, 130.1750 mm) | | Width: | 2.0000 inches (50.8000 mm) | | Height: | 5.1250 inches (130.1750 mm) |
