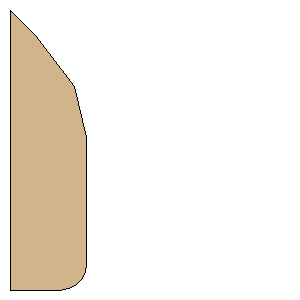

Custom Polystyrene PS Freeform Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Freeform Fin Set | | Material: | Polystyrene PS |
Download as PDF | Point 1: | (0.0000 mm, 69.8500 mm) | | Point 2: | (12.7000 mm, 69.8500 mm) | | Point 3: | (14.6623 mm, 69.5392 mm) | | Point 4: | (16.4324 mm, 68.6373 mm) | | Point 5: | (17.8373 mm, 67.2324 mm) | | Point 6: | (18.7392 mm, 65.4623 mm) | | Point 7: | (19.0500 mm, 63.5000 mm) | | Point 8: | (19.0500 mm, 31.7500 mm) | | Point 9: | (16.0020 mm, 19.0500 mm) | | Point 10: | (6.3500 mm, 6.3500 mm) | | Point 11: | (0.0000 mm, 0.0000 mm) | | Point 12: | (0.0000 mm, 0.0000 mm) | | Point 13: | (0.0000 mm, 0.0000 mm) | | Point 14: | (0.0000 mm, 0.0000 mm) | | Point 15: | (0.0000 mm, 0.0000 mm) | | Point 16: | (0.0000 mm, 0.0000 mm) | | Width: | 2.7500 inches (69.8500 mm) | | Height: | 2.7500 inches (69.8500 mm) |
