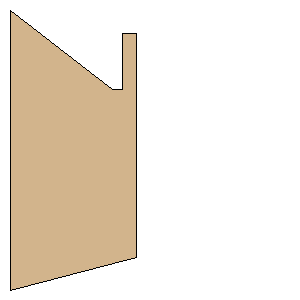

Custom Polystyrene PS Freeform Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Freeform Fin Set | | Material: | Polystyrene PS |
Download as PDF | Point 1: | (0.0000 mm, 60.0000 mm) | | Point 2: | (27.0000 mm, 53.0000 mm) | | Point 3: | (27.0000 mm, 5.0000 mm) | | Point 4: | (24.0000 mm, 5.0000 mm) | | Point 5: | (24.0000 mm, 17.0000 mm) | | Point 6: | (22.0000 mm, 17.0000 mm) | | Point 7: | (0.0000 mm, 0.0000 mm) | | Point 8: | (0.0000 mm, 0.0000 mm) | | Point 9: | (0.0000 mm, 0.0000 mm) | | Point 10: | (0.0000 mm, 0.0000 mm) | | Point 11: | (0.0000 mm, 0.0000 mm) | | Point 12: | (0.0000 mm, 0.0000 mm) | | Width: | 2.3622 inches (60.0000 mm) | | Height: | 2.3622 inches (60.0000 mm) |
