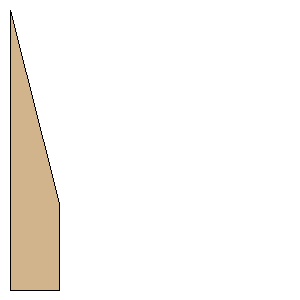

MCR JayHawk Trapezoid Fin Set Trapezoid Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Trapezoid Fin Set | | Material: | Russian 1/8" Ply |
Download as PDF | Root Chord: | 15.2000 inches (386.0800 mm) | | Tip Chord: | 4.7000 inches (119.3800 mm) | | Sweep Distance: | 10.5000 inches (266.7000 mm) | | SemiSpan: | 2.7000 inches (68.5800 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (68.5800 mm, 266.7000 mm) | | Point 3: | (68.5800 mm, 386.0800 mm) | | Point 4: | (0.0000 mm, 386.0800 mm) | | Width: | 2.7000 inches (68.5800 mm) | | Height: | 15.2000 inches (386.0800 mm) |
