Custom TD: Polystyrene Light Freeform Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Freeform Fin Set | | Material: | TD: Polystyrene Light |

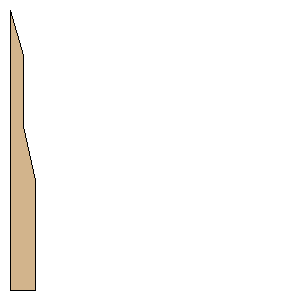

Download as PDF | Point 1: | (0.0000 mm, 96.9264 mm) | | Point 2: | (8.9611 mm, 96.9264 mm) | | Point 3: | (8.9611 mm, 59.0337 mm) | | Point 4: | (4.5720 mm, 40.2336 mm) | | Point 5: | (4.5720 mm, 15.7277 mm) | | Point 6: | (0.0000 mm, 0.0000 mm) | | Point 7: | (0.0000 mm, 0.0000 mm) | | Point 8: | (0.0000 mm, 0.0000 mm) | | Point 9: | (0.0000 mm, 0.0000 mm) | | Point 10: | (0.0000 mm, 0.0000 mm) | | Point 11: | (0.0000 mm, 0.0000 mm) | | Point 12: | (0.0000 mm, 0.0000 mm) | | Point 13: | (0.0000 mm, 0.0000 mm) | | Point 14: | (0.0000 mm, 0.0000 mm) | | Width: | 3.8160 inches (96.9264 mm) | | Height: | 3.8160 inches (96.9264 mm) |
